Wheel Washers – Easy
Description
The mistral Type Easy is a budget-cost wheel wash system for removing light soiling from vehicle tyres. The system delivers 1 full tyre revolution of cleaning power and has a maximum throughput of 20 trucks per hour.

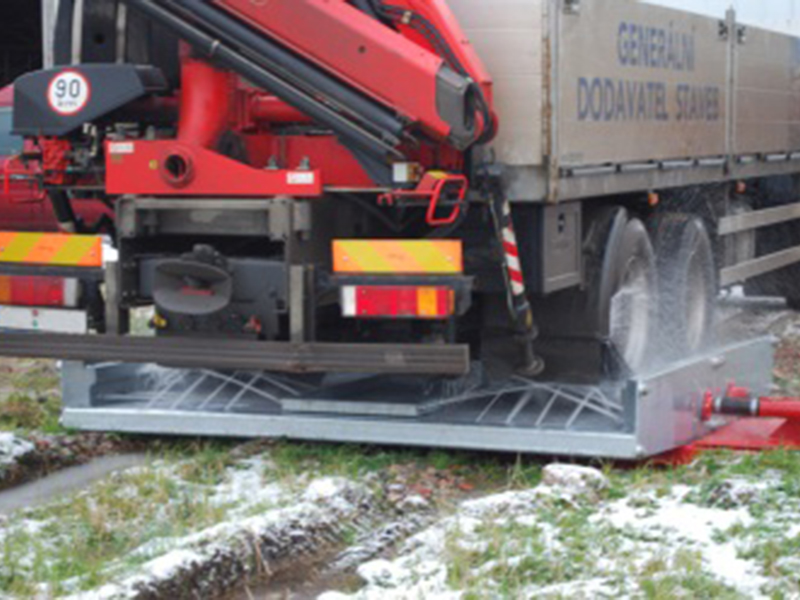

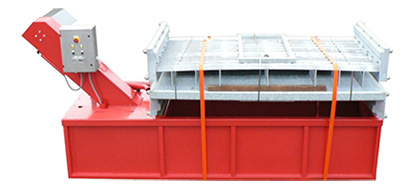

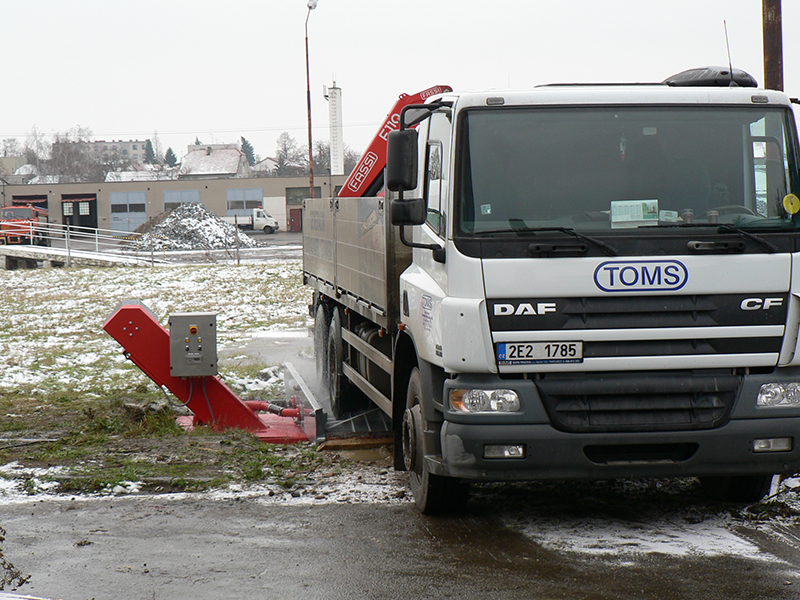

Washing takes place as the vehicle slowly drives through the system and the wash cycle is automatically started via an optical sensor and variably controlled with a timer. The system includes a wash platform and a recycling tank for water treatment with an integrated scraper conveyor for automatic sludge removal.
Available Optional Accessories:
|
|
Function

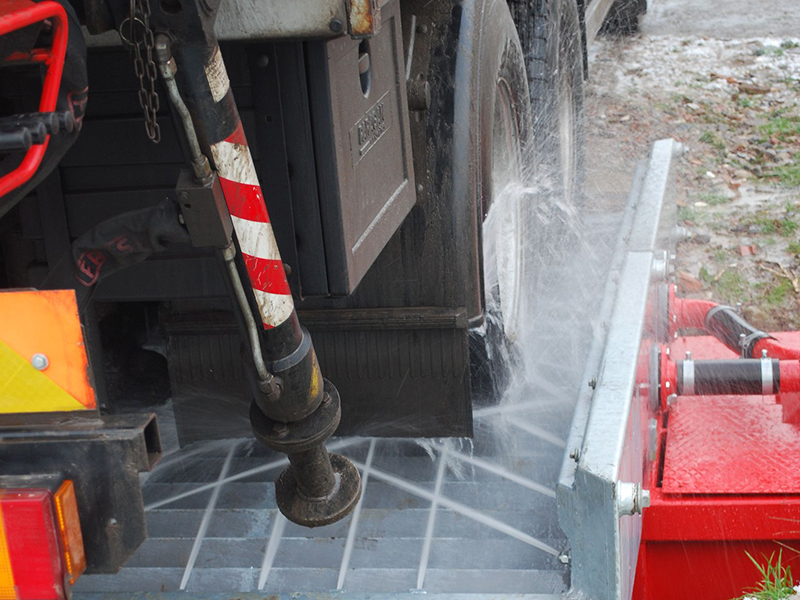

A specially developed nozzle system consisting of bottom and side nozzles integrated in the wash platform, ensures for an efficient water spray profile for targeted cleaning of the tyre profiles. The angled rumble grids that are integrated into the wash platform construction shake vehicles’ wheels and flex open tyre profiles to supplement the cleaning effect.
Washed off sludge is directed into the system’s recycling tank which is located transversely underneath the wash platform. The waste sediment is automatically evacuated via the scraper conveyor and the water is circulated from the tank for reuse in the wash system. The water level in the tank is automatically regulated through a float valve. The use of a flocculent greatly increases and optimizes the sedimentation process and the flocculent is fed via an automatic dosing unit which is included in our standard scope of delivery.
Personnel
The Easy System has a totally automatic operation. Customers’ personnel need only to periodically check and control the nozzles and conveyor system plus ensure a sufficient water supply to the recycling tank. A representative of mistral will instruct the customers’ personnel on routine checks and cleaning of the system during commissioning and handover.
Preparation for installation
The customer is responsible for preparing a pit with a compacted gravel base plus water and electrical power supplies in accordance with the mistral installation guideline drawing.
Guarantee
All mistral Wheel Wash Systems carry a standard manufacturer’s guarantee of 24 months effective from the date of installation. mistral guarantees a permanent supply of spare parts and an established after-sales service.
Sludge Container
“Flipper” Boot Cleaner
Heated Tanks
Insulated Equipment Container
We also design and manufacture bespoke and extra-large systems for dumpers, wheel-loaders, military tanks and other large vehicles.
| Technical Specifications | mistral 400A |
|---|---|
| Maximum trucks per hour: | 20 |
| Drive-through width: | 2.75 m |
| Total width (incl. tank): | 5.30 m |
| Total drive-through length: | 3.50 m (1 x tyre revolution) |
| Total installed length: | 3.50 m |
| In-ground depth: | 1.40 m |
| Standard side wall height: | 0.20 m |
| Total system weight: | 3.5 t |
| Electrical input: | 6.0 kW |
| Tank useful volume: | 3.6 m³ |
| Water use per wash cycle: | Ca. 25 litres |
| Number of wash pumps: | 1 |
| Maximum pump output: | 1800 l/min. |
| No. of Wash Platform Nozzles: | 64 |
| Download mistral Installation Guideline Drawings | EASY |
